PAPERLESS CONFERENCE SYSTEM YC15

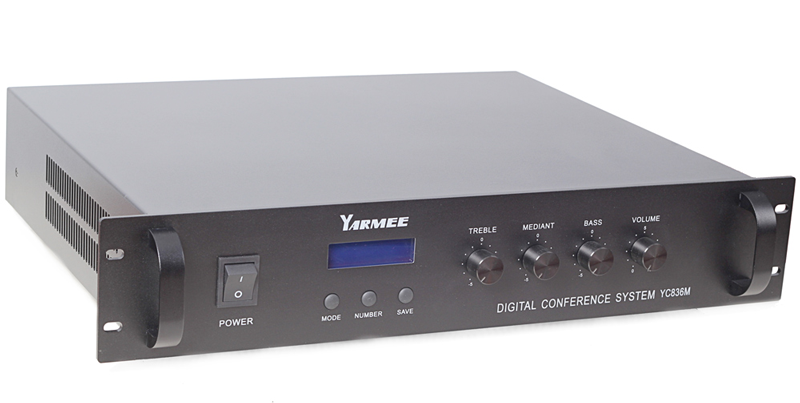

YC836 Video Discussion Conference System
Overview
The main unit can match the request no matter for a few of representative delegate units in the small conference system, or the big conference system including interpreter equipment, hundreds of representative units or wired and wireless language distribution equipment, The main unit has all the power supply for all of the representative units and basic controlled function, and has port which connected with kinds of other equipment. Also, it can reach much more functions by adding other equipment and software.
Features
1. LCD display for status information and configuration
2. Up to connect 240 pcs microphones with extension unit
3. Operate independently or connect with computer external and use with software simultaneously
4. Support Meeting Mode: Applied to speak, Limit, FIFO, AUTO
5. 1~9 microphone speak at the same time
6. Supports automatic camera tracking
7. Supports automatic camera tracking
8. Audio signal input interface, internal connects CD player or audio input equipment
9. One group MlC input interface, external connects signal of handhold MlC and wireless MiC ,three group audio signal output interface,internal connects REC or audio equipment
10. Installed inside 19inch standard frame
Microphone on/off button
Annular red indicator lamp could show the state of the microphone
Chairman unit number in the system is unrestricted, can join in any position of the system
Chairman can turn down delegate MlC by priority button

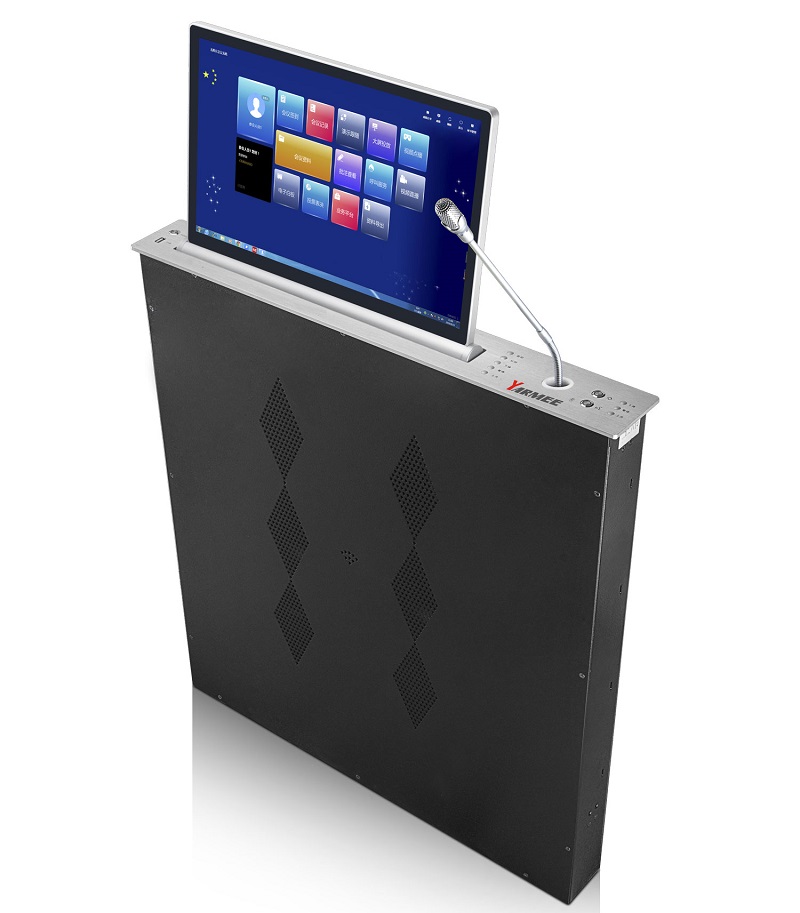

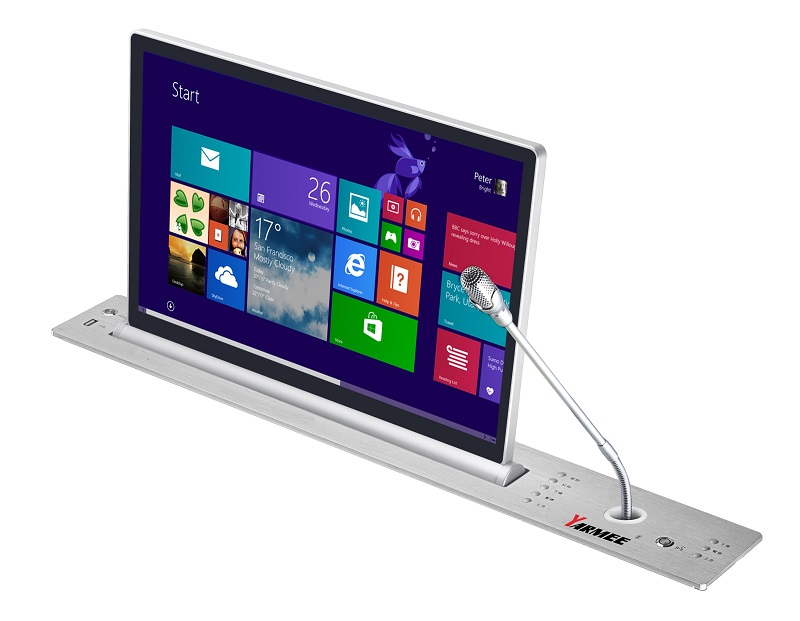

Easy adjustment: Raise or lower the monitor with a remote for comfortable viewing during meetings
Automatic angle: The monitor adjusts itself for the best view when lifted.
Angle control: You can tweak the angle while watching.
Smart shutdown: After meetings, it lowers the monitor, turns off automatically, and closes neatly.
Safety and cleanliness: lt keeps your monitor safe from theft and dust.
Sleek design: When not in use, it keeps your desk tidy.
Flexible usage: Use it alone or with others, and control it manually, with a remote, or with a central system.

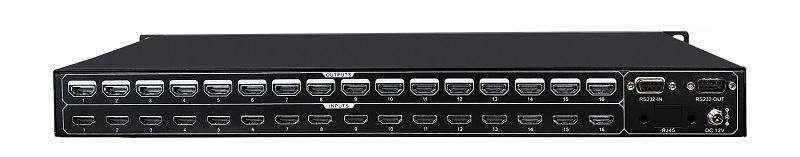

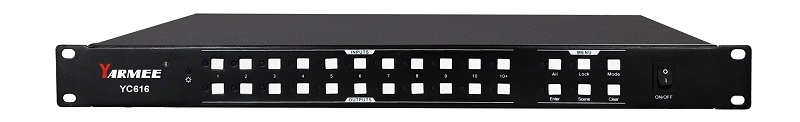

YC616 HD 4K Fixed Seamless Switching Matrix
Overviews
The 4K fixed seamless switching matrix is a high-performance audiovisual seamless switching matrix. lt supports a maximum resolution of 4K@30Hz for both input and output. It has 16 inputs and 16 outputs, with a total of 16x16 HDMl signal routes.lt supports various controls including button control, serial port, and upper computer software, meeting the flexible scheduling and lossless high-definition display requirements audio visual signals in different scenarios.
Features
1U rack-mountable design.
Supports HDMl 1.4 for both input and output.
Supports resolutions up to 3840x2160@30Hz, with input capability of 1080P@120Hz.
Color space support for 4:4:4
High-definition seamless switching matrix functionality
Multiple control methods including buttons, serial port, and upper computer software.Built-in multiple EDlDs with support for custom EDlD
Outputs support various resolutions, and each port can be independently adjusted
Power-off memory function for seamless operation.
